KOBEWEL MIG / MAG Arc Welding Machine (Made in Japan)

₱71,190.00

 HIGHLIGHTS: The Kobewel MIG/MAG series of arc welding machines, made in Japan, are engineered for professional welders who demand precision, durability, and performance. These machines are built to handle a variety...

Ask a Question

Model & Current Range: KM-220D (30-180A)

KM-220D (30-180A)
KM-285D (30-250A)
KMD-285 (20-285A)
KMD-352 (35-350A)
Add to Wishlist
11 People are viewing this right now

Guaranteed Safe Checkout

INSTALLMENT payment is available via BILLEASE (Click for Details).

Pickup available at Gigatools Warehouse

Usually ready in 2-4 days

Manufacturer Partner & Authorized Reseller. Click below to view more:

KOBEWEL Japan
Description

 HIGHLIGHTS:

The Kobewel MIG/MAG series of arc welding machines, made in Japan, are engineered for professional welders who demand precision, durability, and performance. These machines are built to handle a variety of welding tasks with ease, offering a range of capabilities across four models: KM-220D, KM-285D, KMD-285, and KMD-352.

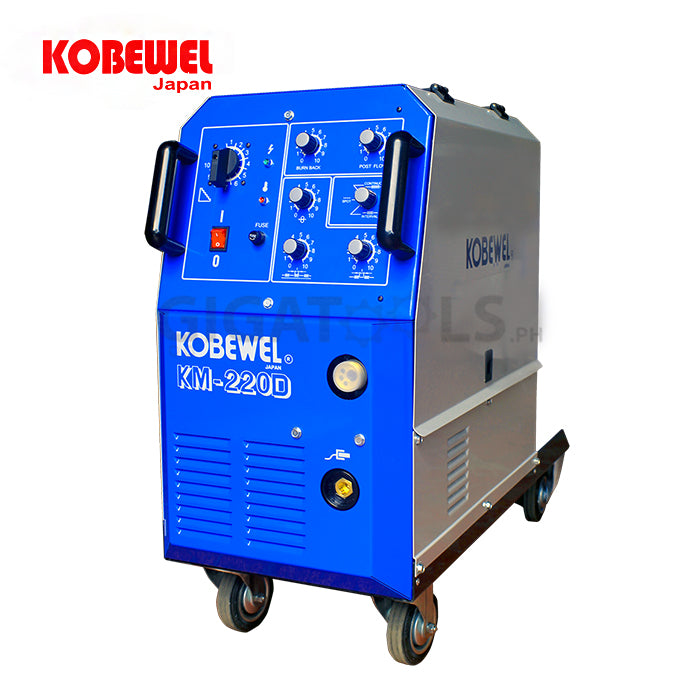

KM-220D

The KM-220D is designed for those needing a reliable and efficient machine for moderate welding tasks. With a power input of 5.5 kVA and a current range of 30-180A, it provides consistent results for lighter applications. It supports a range of wire sizes, making it versatile enough for various materials.

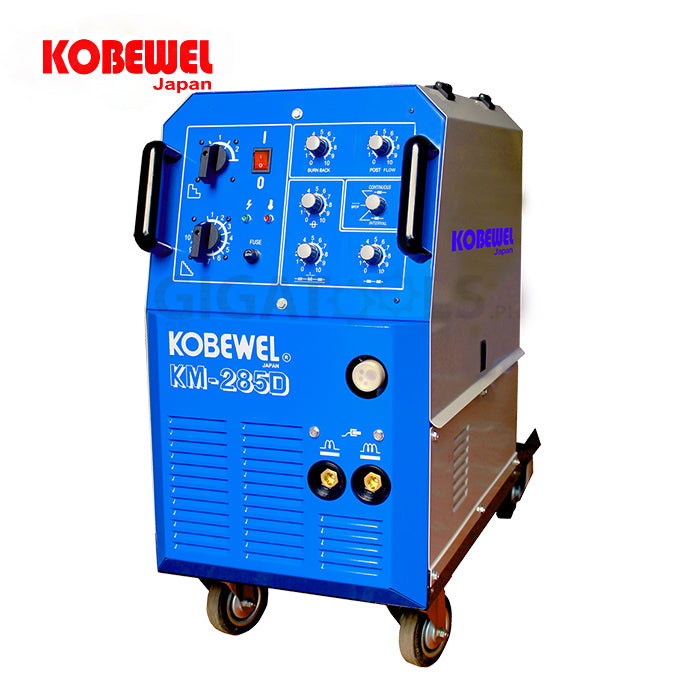

KM-285D

For those needing more power, the KM-285D offers a higher input power of 9.9 kVA and a broader current range of 30-250A. This model is ideal for medium to heavy-duty tasks, providing greater flexibility with its wider adjustment range and support for larger wire sizes.

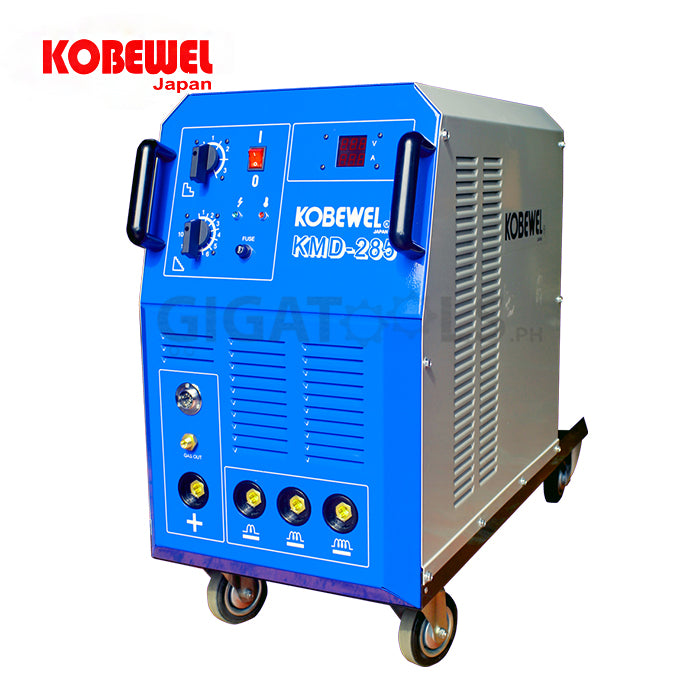

KMD-285

The KMD-285, equipped with a separate wire feeder, is perfect for more specialized welding tasks. It provides a welding range of 20-285A, making it suitable for detailed work requiring precision and control. This model is optimized for use with both aluminum and steel wires, offering versatility in material handling.

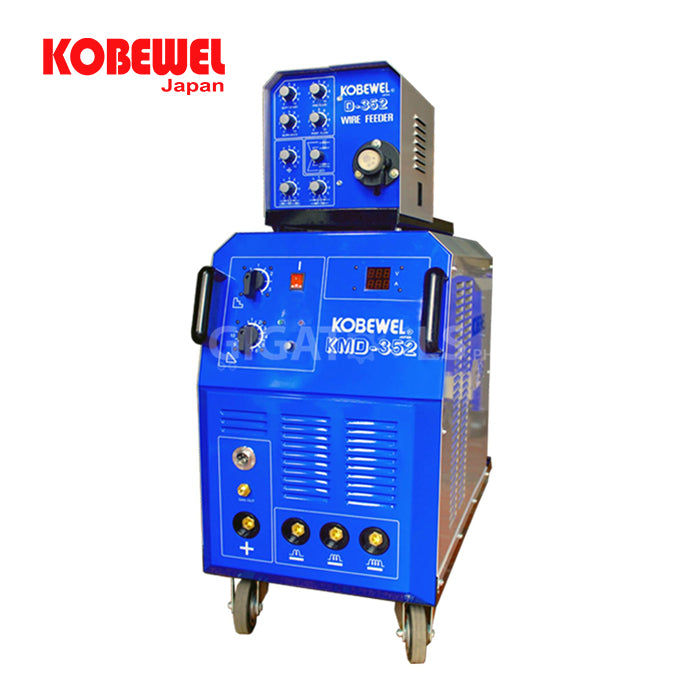

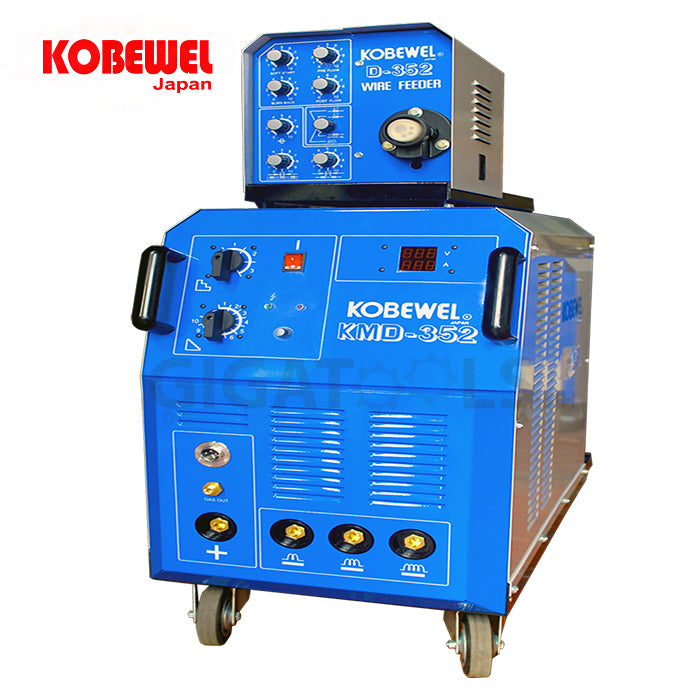

KMD-352

The KMD-352 is the powerhouse of the series, designed for the most demanding welding tasks. With an input power of 14.5 kVA and a current range of 35-350A, it delivers exceptional performance for heavy-duty applications. Its separate wire feeder system and robust construction make it the ideal choice for industrial welding operations.

All Kobewel MIG/MAG welding machines are designed with user convenience and durability in mind. Whether you're handling light, medium, or heavy-duty tasks, these machines offer the precision and reliability needed to achieve professional-quality welds every time.



SPECIFICATIONS:
Specifications KM-220D KM-285D KMD-285 KMD-352
Input Voltage 220V / 3Ph / 60Hz 220V / 3Ph / 60Hz 220V / 3Ph / 60Hz 220V / 3Ph / 60Hz
Input Power 5.5 kVA 9.9 kVA — 14.5 kVA
Current Range 30-180 A 30-250 A 20-285 A 35-350 A
Duty Cycle 40% 60% 40% 60%
No Load Voltage 15-31 V 15.5-36 V 36 V 15.5-43 V
Adjustment Range 10 2 x 10 — 3 x 10
Wire Size MS/SS 0.6-1.0
AL 0.8-1.0		 MS/SS 0.6-1.2
AL 0.8-1.2		 — MS/SS 0.6-1.6
AL 0.8-1.6
Weldable Aluminum Wire — — 0.9-1.2 mm —
Weldable Steel Wire — — 0.8-1.2 mm —
Dimension 38 x 91 x 63 cm 38 x 91 x 68 cm 843 x 355 x 725 mm 50 x 75 x 72 cm
Weight 74 | 79 kgs 85 | 95 kgs 85 kgs (Unit)
18 kgs (Wire Feeder)		 104 (122) kgs



Standard Accessories:

    Model KM-220D

    • 1 set MIG Torch# 200 (3 m Long) + 5 pcs Contact Tip
    • 1 pc Earth Clamp+ Cable(16 mm2 ) (3 m Long)
    • 1 pc C02 Regulator with Heater (220 V)
    • 1 pc Air Hose (3 m Long)

    Model KM-285D

    • 1 set MIG Torch# 200 (3 m Long) + 5 pcs Contact Tip
    • 1 pc Earth Clamp+ Cable (25 mm2 ) (3 m Long)
    • 1 pc C02 Regulator with Heater

    Model KMD-285

    • 1 set MIG Torch 3 m + 5 pcs Contact Tip
    • 1 pc Earth Clamp+ Cable (35 mm2) (3 m Long)
    • 1 pc C02 Regulator with Heater

    Model KMD-352

    • 1 set MIG Torch 3 m + 5 pcs Contact Tip
    • 1 pc Earth Clamp+ Cable (35 mm2) (3 m Long)
    • 1 pc C02 Regulator with Heater
