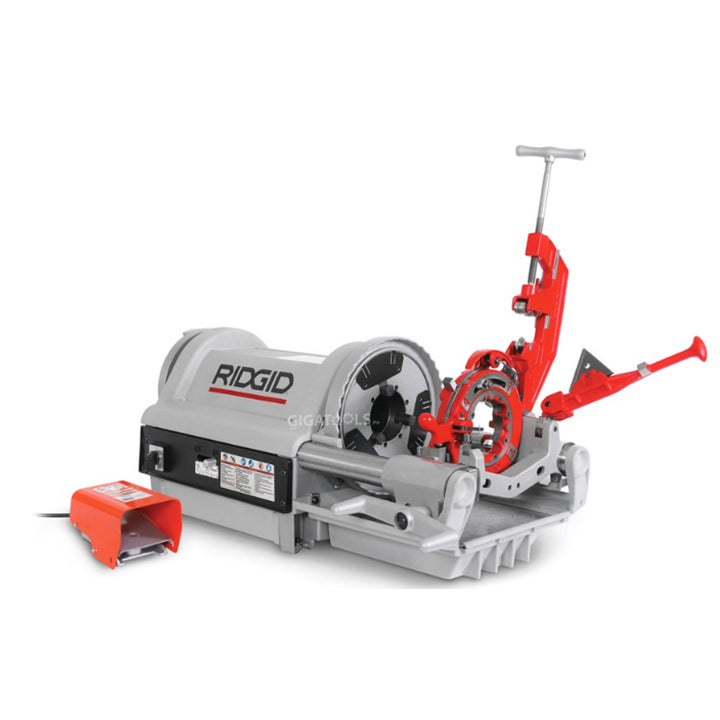

Ridgid 1224 Threading Machine ( 230V ) ( 26097 )
FEATURES: An induction motor helps minimize noise. A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced. 1/4"-2" Universal Die...
Guaranteed Safe Checkout

INSTALLMENT payment is available via BILLEASE (Click for Details).
Manufacturer Partner & Authorized Reseller. Click to View More:
FEATURES:
- An induction motor helps minimize noise.
- A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced.
- 1/4"-2" Universal Die Head; 2 1/2"-4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.
- Constant and proper lubrication of dies and workpiece with through-head oiling.
HIGHLIGHTS:
The Model 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C.
SPECIFICATIONS:
Nominal Pipe Capacity | 1/4"-2" (6mm-100mm) @ 36 RPM, 2-1/2"-4" (65mm-100mm) @ 12 RPM, 4"-6" (100mm-150mm) with 161 Geared Threader. |
Bolt Capacity | 1/4"-2" (6mm-50mm). |
Motor Control | Reverse/off/forward, heavy-duty rotary-type and integral foot switch. |
Gear Box | Two-speed gear box with a 3:1 ratio. |
Chuck | Hammer-type with replaceable rocker-action jaw inserts. |
Rear Centering Device | Cam action. |
Oiling Pump | Self-priming, gerotor-type, automatic-reversing, constant-flow. |
Oiling | Through die head |
CATALOG NUMBER | MODEL NO. | DESCRIPTION | DIE HEAD | RPM | VOLTAGE (V) | FREQUENCY (HZ) | PHASE | MOTOR TYPE | AMP DRAW (A) | POWER | WEIGHT | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
LB. | KG | |||||||||||
26097 | 1224 | 1/4" - 4" NPT Hammer Chuck Machine | 711/714 | 36/12 | 230 | 60 | 1 | Induction | 8 | 1 1/2 HP | 509.0 | 231.0 |
CATALOG SHEET: 1224 Threading Machine ( 230V ) Cat Sheet
OPERATORS MANUAL: 1224 Threading Machine ( 230V ) Manual
PART LIST: 1224 Threading Machine ( 230V ) Part List
