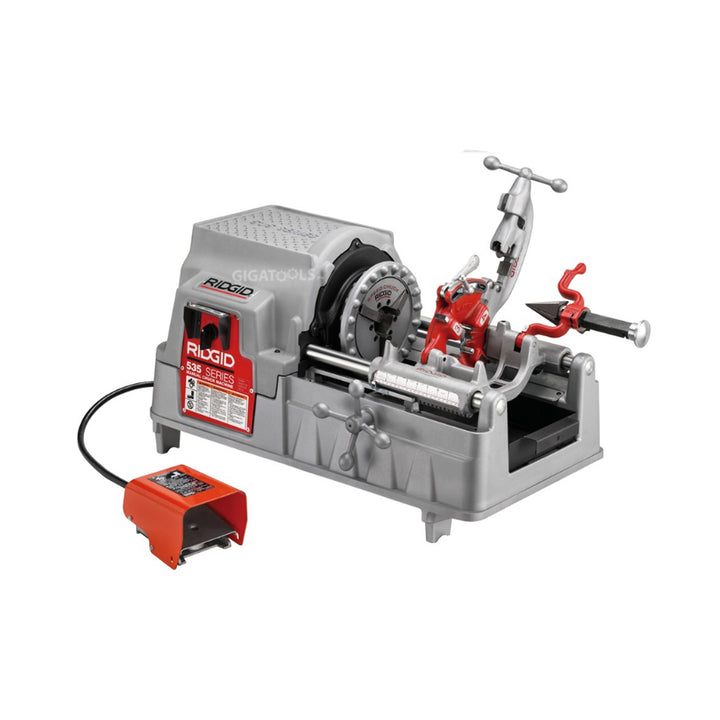

Ridgid 535 Threading Machine ( 230V ) ( 96507 )
⏳ Exclusive Discount. Sale ends in {timer}
FEATURES: Large 1.75 gallon (6.6 L) oil tray. Large chip tray. Generous top cover for keeping tools and fittings handy. High clearance carriage makes threading easier. Speed chuck with rocker-action jaws...
Guaranteed Safe Checkout
INSTALLMENT payment is available via BILLEASE (Click for Details).
Manufacturer Partner & Authorized Reseller. Click to View More:
FEATURES:
- Large 1.75 gallon (6.6 L) oil tray.
- Large chip tray.
- Generous top cover for keeping tools and fittings handy.
- High clearance carriage makes threading easier.
- Speed chuck with rocker-action jaws centers and grips work piece instantly.
- Can be used with geared Models 141 and 161 threaders.
- Uses Model 816/817 semiautomatic, Model 815A self-opening or Model 811A quick-opening die heads.
- Length gauge for quick, accurate cut-off.
HIGHLIGHTS:
The Model 535 maintains the ruggedness of the industry workhorse while adding the features that makes the threading operation more productive. A large chip tray and oil reservoir makes the 535 ideal for longer uninterrupted threading. The 535 is designed around maximum uptime with the upgrades that matter most to the pipe working professional. Users also benefit from the part commonality between the 535, the 535A Automatic and other RIDGID® equipment.
SPECIFICATIONS:
| Pipe Capacity | 1/8"-2" (3mm-50mm) 2 1/2"-4" (62mm-100mm), 4"-6" (100mm-150mm) with 141 and 161 geared threaders. |
| Bolt Capacity | 1/4"-2" (6mm-50mm). |
| Switches | Forward/off/reverse and integral foot switch. |
| Chuck | Speed Chuck™ with three replaceable rocker-action jaw inserts. |
| Rear Centering Device | Cam-action, turns with chuck. |
| Cutters | Self-centering, full-floating. Two models available: Standard Model 820 Wheel-Type Cutter, pipe capacity 1/8"-2" (3mm-50mm), bolt capacity 1/4"-1" (6mm-25mm). Optional Model 821 Blade-Type cutter, pipe capacity 1/2"-2" (12mm-50mm). See ordering chart. |
| Reamer | 5-flute cone, RH, 1/8"-2" (3mm-50mm). |
| Oil Pump | Self-priming gerotor oil pump. |
| Reamers | RH/LH combination reamer available. |
| CATALOG NUMBER | MODEL NO. | DESCRIPTION | DIE HEAD | RPM | VOLTAGE (V) | FREQUENCY (HZ) | PHASE | MOTOR TYPE | AMP DRAW (A) | POWER | WEIGHT | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LB. | KG | |||||||||||
| 96507 | 535 | 1/2" - 2" NPT Hammer Chuck Machine | 811A | 36 | 230 | 50 - 60 | 1 | Universal | 7.5 | 1/2 HP | 260.0 | 117.9 |
CATALOG SHEET: 535 Threading Machine ( 230V ) Cat Sheet
PART LIST: 535 Threading Machine ( 230V ) Part List
OPERATORS MANUALS: 535 Threading Machine ( 230V ) Manual
