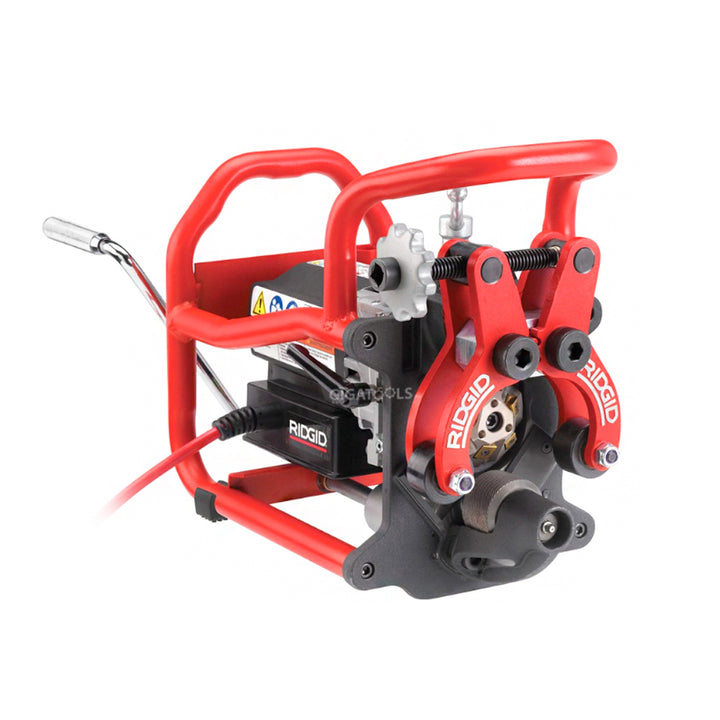

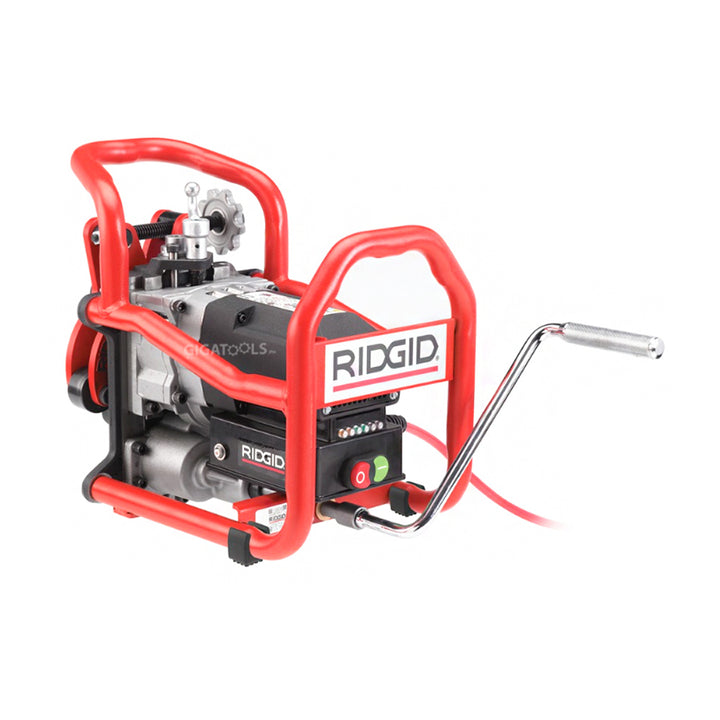

Ridgid B-500 Transportable Pipe Beveller ( 230V ) ( 49303 )

₱223,135.00

⏳ Exclusive Discount. Sale ends in {timer}

FEATURES: Speed Set-up and bevel 10" diameter schedule 40 pipe in 45 seconds! Pipe is cool to touch immediately following bevelling. Consistency Accurate bevel angle around diameter of the pipe allows...

Add to Wishlist
People are viewing this right now

Guaranteed Safe Checkout

INSTALLMENT payment is available via BILLEASE (Click for Details).

Manufacturer Partner & Authorized Reseller. Click to View More:

Ridgid
Description

FEATURES:

Speed

  • Set-up and bevel 10" diameter schedule 40 pipe in 45 seconds!
  • Pipe is cool to touch immediately following bevelling.

Consistency

  • Accurate bevel angle around diameter of the pipe allows for optimal number of cover passes.
  • Adjustable land width from 0" to 3/16" to fit welders’ requirements.
  • Produces a machined finish due to 6 replaceable cutter inserts working simultaneously.

Simplicity

  • Fast to set-up and operate.
  • Patent-pending clamp system firmly secures tool to the pipe.
  • Speed monitoring with led indicators for optimal cutter performance.
  • Grinding spark free operation.
  • Adjustable at 1/32" increments



HIGHLIGHTS:

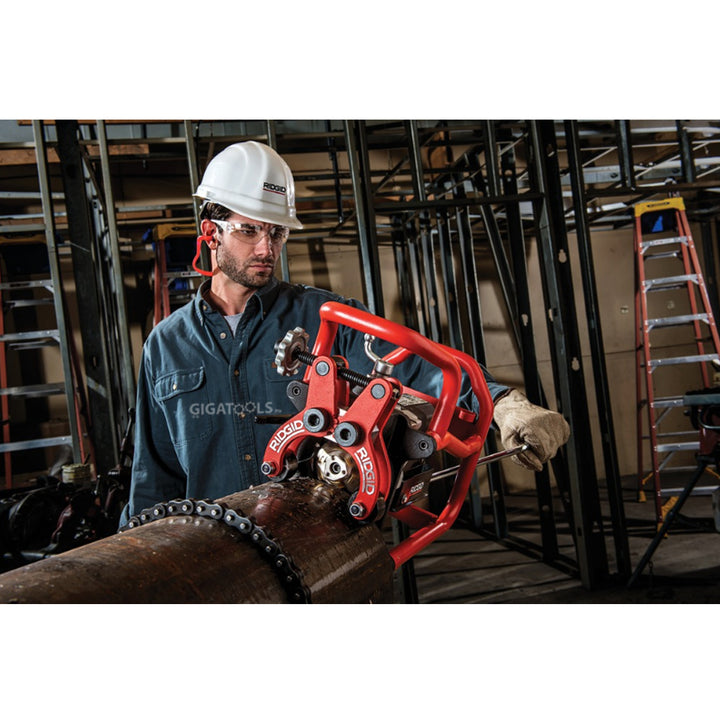

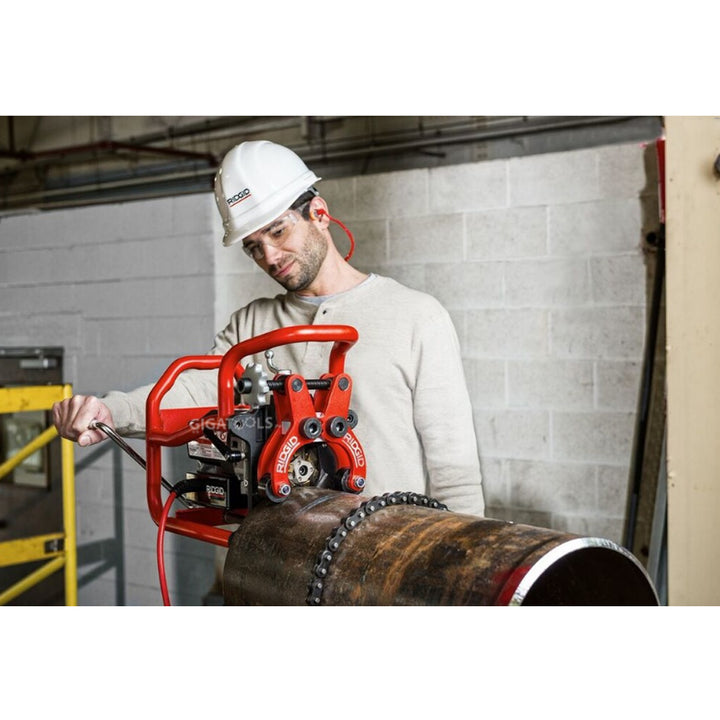

The B-500 Transportable Pipe Beveller produces high quality bevels in 45 seconds* without flames or sparks. The compact design quickly mounts to pipe 4” and up with a maximum wall thickness of 1/2”, and creates consistent bevels in a single pass.



SPECIFICATIONS:

Capacity 4” pipe and larger, flat plate.
Pipe Wall/ Plate Thickness Min 0.188" (4.8 mm)/Max 0.50" (12.7 mm).
Models Equipped with – 37.5°; 30° or 45° (with Optional Cutter Heads).
Cutter Head Rated for most steel & stainless steel*.
Size 15.8 in. (401 mm) L x 11.5 in. (292 mm) W x 13.3 in. (338 mm) H.
Land Width 0" - 3/16" (4.8 mm) in approximately 1/32" (0.8 mm) increments.
Motor Type Universal single-phase.
Motor RPM 950 (no load).
Body Steel frame



PART LIST:  B-500 Transportable Pipe Beveller Part List
CATALOG SHEET: B-500 Transportable Pipe Beveller Cat Sheet
OPERATORS MANUAL:  B-500 Transportable Pipe Beveller Manual
