Shinsetsu Submersible Sewage and Drainage Pump ( Cutting Vortex Sewage Type )

₱15,299.00

⏳ Exclusive Discount. Sale ends in {timer}

HIGHLIGHTS: The Shinsetsu Cutting Vortex Sewage Type Submersible Pump combines powerful motor performance with advanced cutting vortex technology to provide reliable and effective sewage and wastewater management. Its durable construction ensures...

Power: 1HP x 2" (SEP-112CF)

1HP x 2" (SEP-112CF)
2HP x 2" (SEP-122CF)
3HP x 2" (SEP-132CF)
3HP x 3" (SEP-333C)
5.5HP x 3" (SEP-3553C)
7.5HP x 4" (SEP-3754C)
10HP x 4" (SEP-3104C)
Add to Wishlist
People are viewing this right now

Guaranteed Safe Checkout

INSTALLMENT payment is available via BILLEASE (Click for Details).

Manufacturer Partner & Authorized Reseller. Click to View More:

Shinsetsu
Description

HIGHLIGHTS:

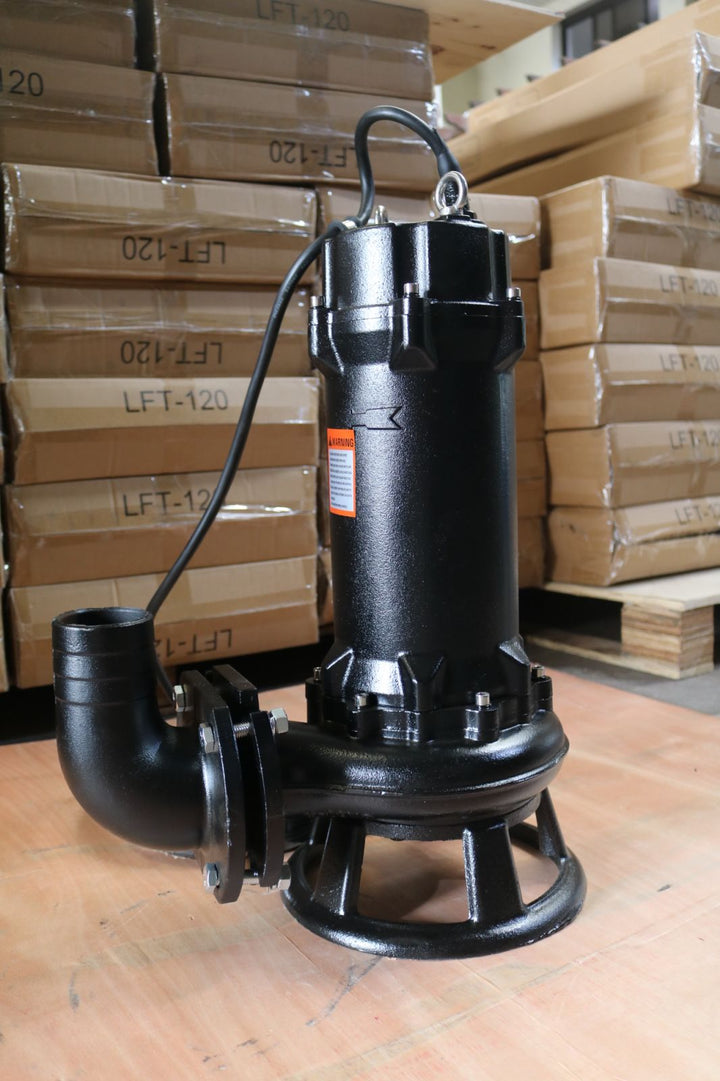

The Shinsetsu Cutting Vortex Sewage Type Submersible Pump combines powerful motor performance with advanced cutting vortex technology to provide reliable and effective sewage and wastewater management. Its durable construction ensures long-lasting operation even under challenging conditions.



FEATURES:

  • High-Performance Motor: Equipped with a powerful motor that delivers robust performance for heavy-duty sewage and drainage tasks.
  • Durable Construction: Made with high-quality, corrosion-resistant materials to withstand harsh environments and extend service life.
  • High Flow Rate: Capable of handling significant flow rates, making it efficient for large-scale drainage and sewage applications.
  • Automatic Operation: Features an automatic float switch for convenient and reliable operation, preventing dry running.
  • Thermal Overload Protection: Includes built-in thermal overload protection to prevent motor damage due to overheating.
  • Easy Installation and Maintenance: User-friendly design allows for straightforward installation and maintenance, ensuring hassle-free operation.



SPECIFICATIONS:
Model No. Motor Output Bore Diameter Voltage Frequency Phase H. Rated Capacity Q.Rated Capacity H.Max Capacity Max Capacity Free Passage Speed
SEP-112CF 1HP / 0.75 Kw 2" (20mm) 220V 60Hz 1 10m³/h 10m 15m 10m³/h 20mm 3500RPM
SEP-122CF 2HP / 1.5 Kwh 2" (20mm) 220V 60Hz 1 15m³/h 12m 23m 30m³/h 20mm 3500RPM
SEP-132CF 3HP / 2.2 Kw 2" (50mm) 220V 60Hz 1 20m³/h 20m 22m 38m³/h 20mm 3500RPM
SEP-333C 3HP / 2.2 Kw 3" (75 mm) 220V 60Hz 3 10m³/h 10m 25m 47m³/h 32mm 3500RPM
SEP-3553C 5.5HP / 4 Kw 3" (75 mm) 220V 60Hz 3 17m³/h 17m 28m 76m³/h 32mm 3500RPM
SEP-3754C 7.5HP / 5.5 Kw 4" (160 mm) 220V 60Hz 3 15m³/h 15m 30m 112m³/h 40mm 3500RPM
SEP-3104C 10HP / 7.5 Kw 4" (100 mm)  220V 60Hz 3 15m³/h 15m 34m 150m³/h 40mm 3500RPM
